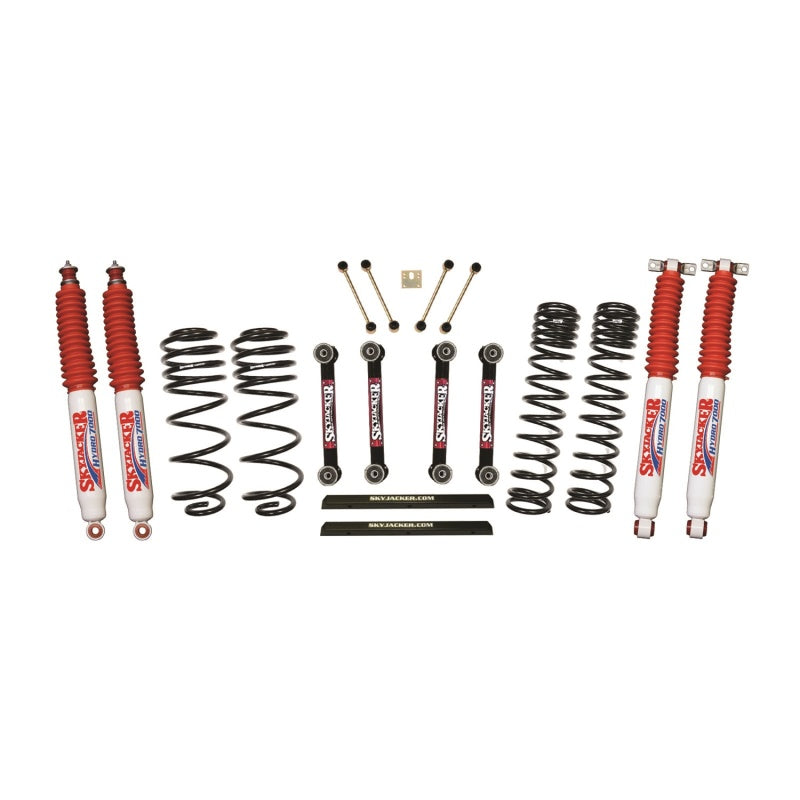

Skyjacker 4 in. Dual Rate Long Travel Suspension Lift Kit with Standard Lower Links w/ Hydro 7000 Shocks – 1997-2002 Jeep Wrangler 4WD (TJ401BPHLT)
Complete kit. Includes:
- TJ40FS-DR – Tj4 Xj3 F Coils-Dr Long Tr (qty 2)
- TJ40RS-DR – Tj 40 Rear Coils-Dr Long Tr (qty 2)
- TJLL24-L – Jeep Lwr Links Tj/Xj/Zj 2-4 (qty 4)
- SKYTCL151 – Transfer Case Lowering Kit (qty 1)
- H-BOX TJ4013B – Hdwr Box: Tj401/403Bph (qty 1)
- Skyjacker Hydro 7000 shocks
Skyjacker’s suspension lift kit provides improved handling and increased suspension articulation. Take your TJ to the next level of on-road drivability with greater off-road potential.
On the Wrangler TJ, coil springs and shocks are primary determining factors in ride quality and suspension performance.
Skyjacker specifically engineered a 2-stage dual rate long travel coil. Spring rate progression is from a first Flex Rate to a second Ride Rate. First Flex Rate stage delivers a comfortable ride with the ability to flex/expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain.
Second Ride Rate stage only engages after compression past Flex Rate: resulting in a smoother ride.
Longer Replacement Front and Rear Lower Control Link Arms, Front and Rear Bump Stop Spacers, Front and Rear Extended Length Sway Bar End Links, a Drop Pitman Arm, a Transfer Case Lowering Kit and a Rear Track Bar Lower Axle Mount Bracket are all included complete with Bushings and High-Grade Mounting Hardware.
Works with OEM Electronic Stability Control (ESC) System.
Skyjacker Hydro 7000 shocks (hydraulic, velocity sensitive) are included.
| Lift Height | 4 in. |
|---|---|
| Max Tire Size | 34 x 12.50 |
| Wheel | 15-20 x 8 |
| Backspacing | 3.75 in. |
| Approximate Install Time | 7 Hours |
| Install Difficulty | Moderate - No Cutting or Welding |
Installation Instructions: Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2002 | Jeep | Wrangler | Sahara |
| 1997-2002 | Jeep | Wrangler | SE |
| 1997-2002 | Jeep | Wrangler | Sport |
| 2002 | Jeep | Wrangler | X |
