This product is handmade in Europe and can take up to eight weeks to arrive. No returns or exchanges accepted.
What This Is

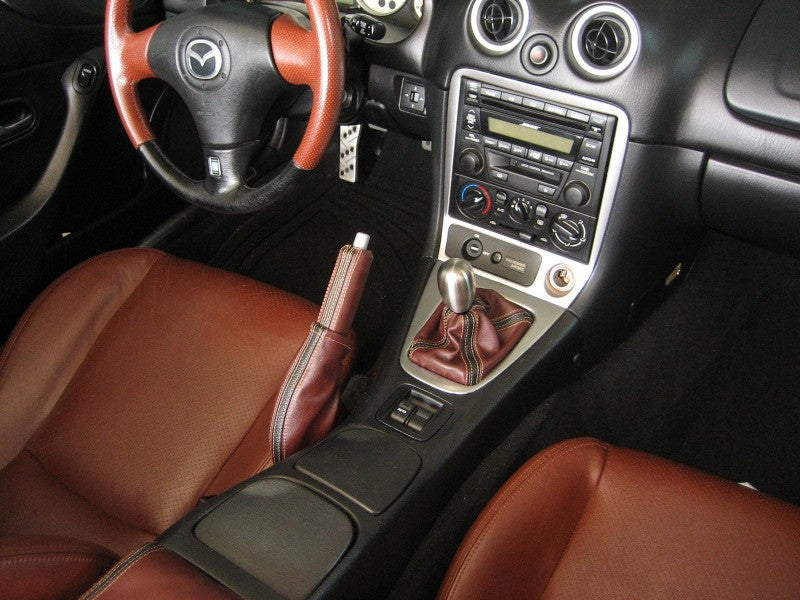

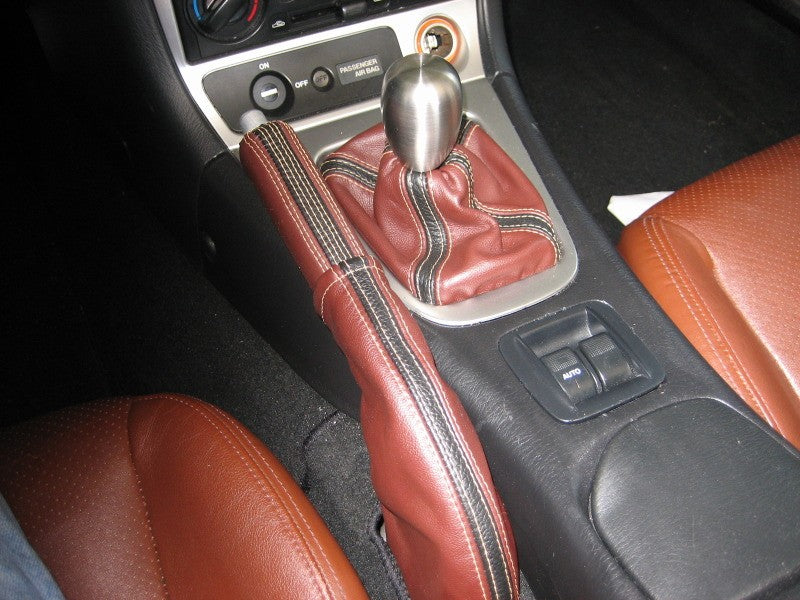

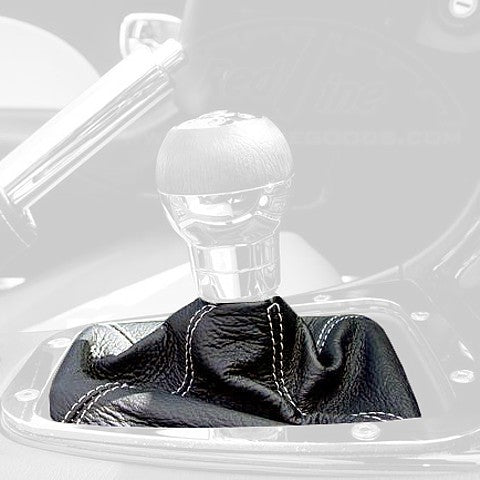

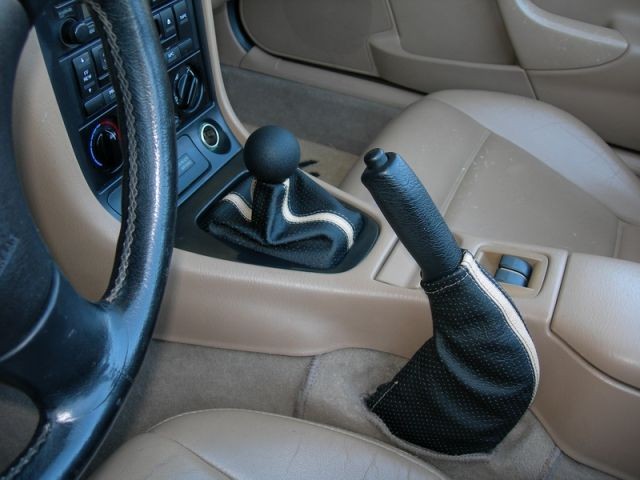

A custom-sewn leather shift boot for your 1998-05 Mazda Miata Nb. It's the leather only: it installs on your factory frame or trim ring. It is not a complete shift boot assembly.
What's Included
- Included: 1 leather shift boot, cut and sewn to order in the material and colors you choose.
- Not included: shift knob, trim, frames or hardware. You reuse your factory parts.
Before You Order
- Fits 1998-05 Mazda Miata Nb.
- It's made to order, so it can take up to 8 weeks to arrive and can't be returned or exchanged. Please double-check your year, fitment, and colors before ordering.
- International shipping: every piece ships from Poland, so a $15 international shipping charge applies to each item at checkout.
Installation
Difficulty: Moderate | Tools: screwdrivers, basic hand tools, glue or a stapler depending on your frame
You'll remove the shift knob and trim, move the new boot onto your factory frame, and reinstall.
▼ Click to Open / Close Step-by-Step Installation Guide (10 Steps)
Step 1. Open the storage box at the back of the rear console. Remove the 2 screws from the base.
Step 2. Lift out the ashtray / cupholder, and remove the single recessed screw. With 2003 and newer Miata, that screw is actually located under the power window switches, which arent so easy to get out. Use a swiss army knife to very gently and carefully (pretty soft plastic, easy to damage) pry out the switch surround and get at that screw. The power window wires make it impossible to actually take OUT the center console, so accessing the boot screws can be a bit harder that in earlier models.
Step 3. Unscrew the shift knob. Remove the 2 screws on each side. The console can now be removed as follows: lift the front, guide the old ratty shifter boot over the end. Once clear in the front, move the entire console forward to disengage the fuel cap/trunk release. The ashtray light connector and the power window switch (if equipped) connectors can be released but it is not necessary in order to install your new leather shifter boot.
Step 4. Turn the console upside town and remove the front boot holder's 4 screws. This picture shows the holder without the shift boot, you will have your old shift boot in the holder at this time, obviously.;).
Step 5. Detach the old boot, note the installation method. Also note the wiring harness needs to go under the wiring guide belt into the plastic boot holder.
Step 6. Install new boot as shown. PLEASE BEWARE: the boots are cut specifically for your Miata. MX-5, ie. The front (facing stereo) is cut wider than the rear (facing trunk). You will need to re-use the top ring from your old boot and either glue it into the new boot, or use a ZIP-tie to mount the flaps of the boot on your shifter shaft. The flaps have been extended more than necessary to allow for more flexibility for your install - please feel free to trim them if you feel like it.
Step 7. Reinstall the boot holder. Make sure your wiring harness is underneath the boot holder before tightening the 4 screws.
Step 8. Reattach center console. Reinstall shift knob. Adjust the shift boot to 'crinkle' as you desire.
Step 9. Cut off your original e-brake handle cover along the threads. Slide the new handle down the plastic handle until it looks like this. Glue the tip down onto the plastic handle.
Step 10. Slip fit the e-brake boot over the plastic e-brake cover. Tuck the excess leather into the slot in the carpeting.
Leather care: apply a leather conditioner with UV protection every 4-6 weeks to keep it from drying out and cracking.
Options & Pricing
Choose your material, colors, and stitching color in the options above. Add-on prices are added in the cart.
Material
- Regular Leather
- Perforated Leather
- Nappa Leather +$15
- Genuine Alcantara +$25
- Faux Alcantara
- Carbon Fiber Vinyl
Two-tone: choose a second color in the options above.
Layout
- Default (Like My Factory Boot)
- 4 Panel (Stitching Forms An X) +$9
- Front to Back (Axis Of Car) +$9
Style
- Quadruple Thread +$9
Quadruple stitching color applies to the outer lines of thread.
