1998-02 Subaru Forester E-Brake Boot

Step 1. Begin by opening the lid to the center console. At the front of the center console you will see two screws holding on the plastic trim piece that surrounds the e-brake lever. Remove these screws.

Step 2. Lift the loosened trim piece over the e-brake handle and set it aside.

Step 3. Grab the shifter surround from the rear (revealed by removal of the e-brake surround), and lift it out. It may be necessary to pry with a screwdriver from the sides to get it loose. The shift boot will still be attached to the shift lever, so don't try to remove the trim, just get it loose.

Step 4. Twist the shift knob counter-clockwise. It should spin free of the boot and trim piece, but if it doesn't, spin the trim with it (as loosened in step 3). It will take a number of revolutions to remove it, so be patient.

Step 5. Lift the entire assembly from the shift lever (plastic trim, vinyl boot, and shift knob) as a unit.

Step 6. Flip the trim piece upside down. You will see a plastic ring holding the shift boot on, secured by small metal fasteners. To remove these fasteners, use a pair of needle nose pliers to lift them off. Expect to spend some time doing this, as they do not come off easily. However, they will be re-used, so remove them carefully (although don't worry about bending them, as you can bend them back if needed). Take care to not break off the plastic studs they fit over.

Step 7. Remove the boot, knob, and plastic ring from the trim piece as a unit.

Step 8. Remove the plastic trim piece from the boot. It is glued on very well, so it can be difficult to get it started, but will be much easier once it gets going.

Step 9. Invert the boot. You will see a black plastic ring with the old boot sandwiched between this ring and the knob. Remove this ring by pulling it away from the shift knob.

Step 10. Invert the new boot.

Step 11. Insert the shift knob into the inverted boot, with the white end leading (so it will come out of the end of the inverted boot).

Step 12. Align the end of the knob with the end of the boot, and then pull the knob back approximately 1/4 inch (~1cm) INTO the boot. This will ensure there will be no slits showing at the top of the boot.

Step 13. Re-install the plastic ring, with the wider end facing away from the boot (as it was installed before). It may be stiff, but will go into place with some force.

Step 14. Flip the boot right-side-out. Inspect the area around the knob to ensure there are no visible openings in the leather. If so, repeat steps 11-13 as needed.

Step 15. Slide the boot back into the plastic trim piece. Fan the boot out so it covers the entire space. The shorter threaded seam should point towards the passenger's seat when finally assembled.

Step 16. If working alone, you may find it necessary to tape the boot into place, as is shown below. With an assistant, this should not be necessary. Make sure there is not leather covering the plastic studs (there are spaces provided in the leather for the studs to come thru).

Step 17. Re-install the plastic ring. It is not necessary to glue it, although you may if you desire a more secure fit. There is a small "F" on the front of the plastic ring, and it is directional, so pay close attention to this. Re-install the retaining metal clips, bending them as needed to achieve a secure fit. Once the ring is secure, remove any excess tape, if used.

Step 18. Flip the assembly over and ensure the leather is evenly seated around the entire trim piece. If there are any creases or folds in the leather, flip it back over and pull them out gently.

Step 19. Loosely slip the trim and boot over the shift knob. Screw the knob onto the shift lever. Because the leather is so much thicker than the stock vinyl, it may be necessary to spin the entire trim piece with the knob and boot. Install the trim piece.

Step 20. The stock rubber and metal covers will then pull straight down and off the plastic rods.

Step 21. To install your new boot you will need a marker, some form of leather punch, and just a little bit of patience. The first step, using the stock rubber piece as a guide, is to mark off all the holes that will need to be punched in order to slide on to the plastic rods on the trim piece. Make sure the back of the rubber piece (the side with the flaps) lines up with the back of the new boot. The next step is to carefully mark the holes. Work from one side of the rubber to the other, holding the leather tight against it as you go. Just follow the curves, making sure the fabric doesn't slip and throw off the alignment of the holes.

Step 22. Once all of the holes are marked, use a punch (preferably no bigger than an average nail's head) to poke through the marked areas. Do this on a hard surface to ensure the fabric will not collapse in on the surface being used to support it. A block of wood works.

Step 23. Once all holes are punched, the boot should align fairly closely to the plastic rods on the back of the trim piece. To keep the boot from slipping off, simply wrap slim strips of duct tape around the exposed ends of the rod. Could there be a different way to do this? Probably.but this works perfectly. If you don't like duct tape, you can use glue.

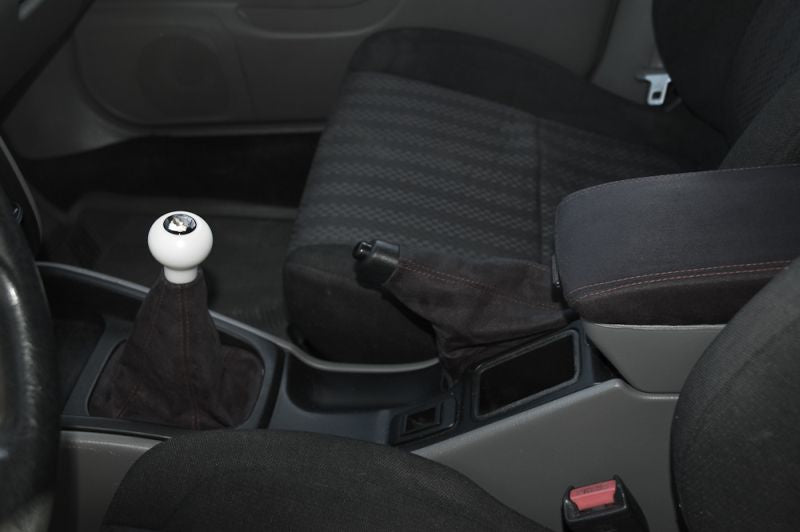

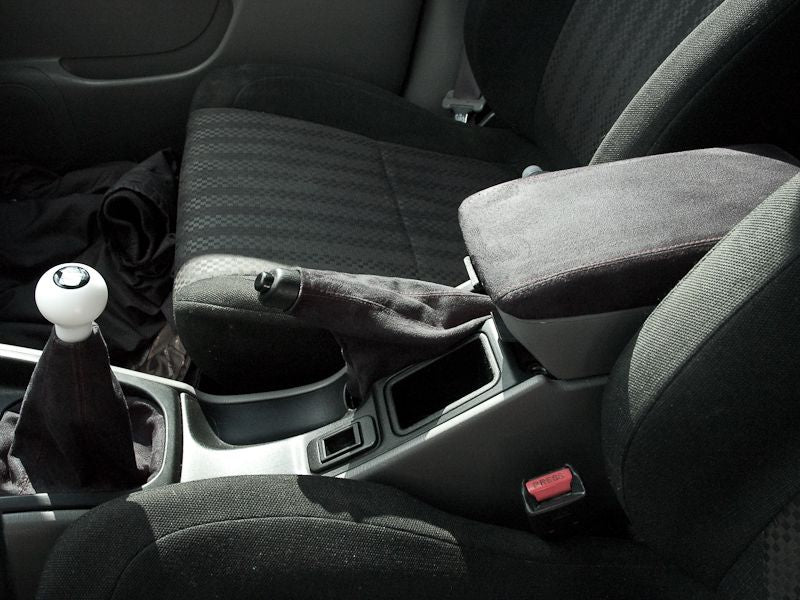

Step 24. The final product should look something like this! To reinstall simply slide the brake handle back through the boot and snap the trim piece into place.

Step 25. Fold back the armrest cover. You will find two screws on the hinge that need to be removed.

Step 26. Holding the cover, you will now find 9 screws in total. After removing these, the two pieces will separate.

Step 27. The new cover will now slip on over the existing armrest. Gluing is optional if the fit is already snug. Once the cover is on, all screws can be replaced, just as they were taken out. It's that simple!

Step 28. REINSTALL EVERYTHING IN THE REVERSE ORDER OF REMOVAL.
