This product is handmade in Europe and can take up to eight weeks to arrive. No returns or exchanges accepted.
What This Is

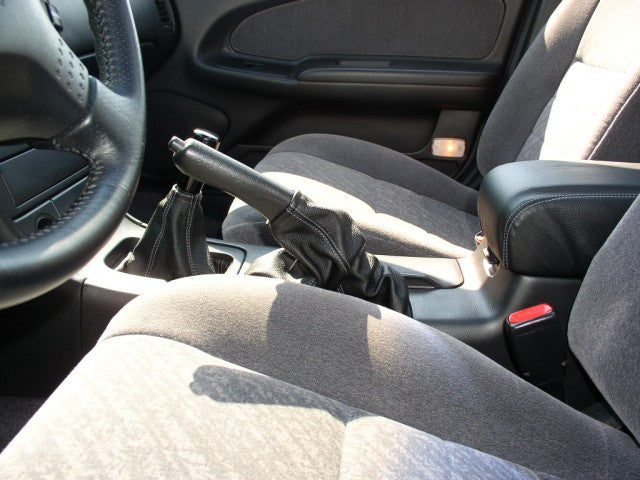

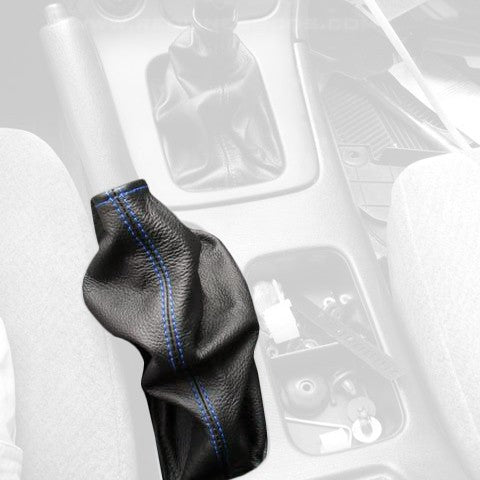

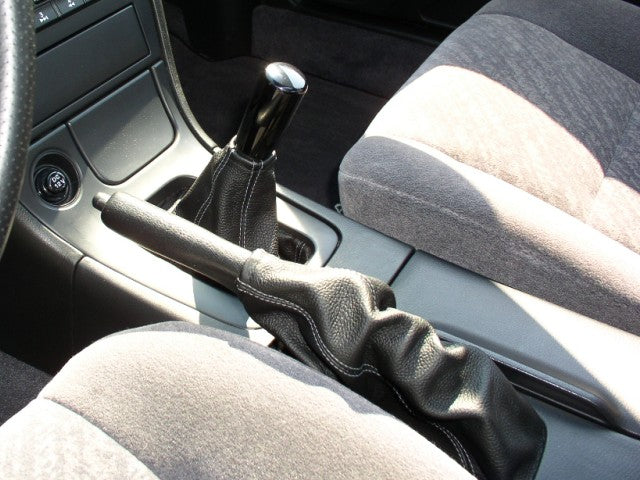

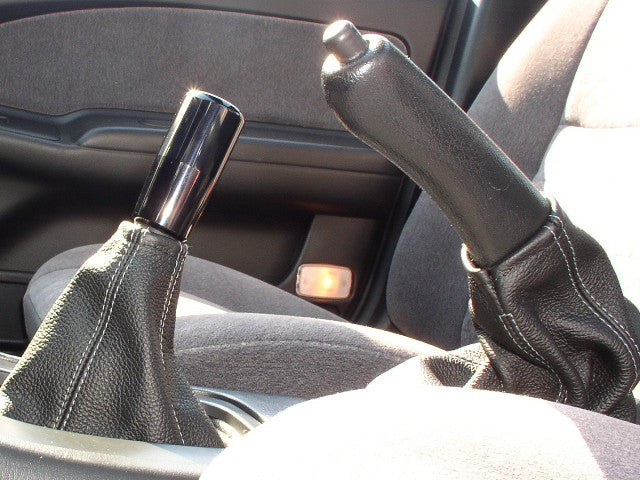

A custom-sewn leather e-brake boot for your 1995-99 Infiniti I30. It replaces the factory boot and installs on your factory frame or trim. It is not a complete e-brake assembly.
What's Included
- Included: 1 leather e-brake boot, cut and sewn to order.
- Not included: e-brake handle, trim or hardware. You reuse your factory parts.
Before You Order
- Fits 1995-99 Infiniti I30.
- It's made to order, so it can take up to 8 weeks to arrive and can't be returned or exchanged. Please double-check your year, fitment, and colors before ordering.
- International shipping: every piece ships from Poland, so a $15 international shipping charge applies to each item at checkout.
Installation
Difficulty: Moderate | Tools: screwdrivers, basic hand tools, glue or a stapler depending on your frame
You'll remove the e-brake trim, move the new boot onto your factory frame, and reinstall.
▼ Click to Open / Close Step-by-Step Installation Guide (20 Steps)
Step 1. Start by removing your Shift Console.
Step 2. Pull the the rear of the shift console towards you and slightly lift.
Step 3. Pull the console slowly until it separates from the lower portion of the radio.
Step 4. Turn the shift knob counterclockwise to remove it. You will need to remove the shift knob before you can remove the console. If it's never been removed before, it's going to be very tight. Use vise-grips to remove it but make sure to protect the surface of the shift knob with a towel.
Step 5. Also remember to remove the attachment for the Cigarette lighter.
Step 6. Here is a picture of the new boot next to the console and old boot.
Step 7. Turning the console upside down you will see grooves where the old boot is secured into the console.
Step 8. Pry the old boot out of the grooves under the bottom of the console.
Step 9. Remove the metal rods in the bottom of each boot.
Step 10. To install the metal rods for securement, you will have to cut the rod to insert it into the new boot.
Step 11. Here is shot of the Rod going in the new boot.
Step 12. Here is a shot of the metal rod inserted in the boot. You maybe have to use JB Weld to keep the Rod perfectly in place.
Step 13. Once you have the metal Rod inserted in the boot, turn the console upside down and install the new boot into the grooves of the bottom of the console.
Step 14. Here is a shot of the new boot in the console.
Step 15. Repeat in reverse order the instructions on Removing the Shift Console and slowly slide the boot and console over the shifter and slide the console its place.
Step 16. To remove the E Brake boot you will have to press down on the front of the boot by the opening of the shift console.
Step 17. Once you have lifted the E Brake boot out of its grooves you can slide it over the top of the brake lever.
Step 18. Now its time to install the metal rod in the e-brake Boot. With the boot facing towards the car, the thread stitch goes on the bottom of the brake. Line it up in the car before cutting and inserting the rod. Try to get a very good idea of how you are going to mount the boot.
Step 19. Here is a picture of the rod installed in the boot.
Step 20. Re-insert the E Brake Boot and rod as before.
Leather care: apply a leather conditioner with UV protection every 4-6 weeks to keep it from drying out and cracking.
Options & Pricing
Choose your material, colors, and stitching color in the options above. Add-on prices are added in the cart.
Material
- Regular Leather
- Perforated Leather
- Faux Alcantara
- Carbon Fiber Vinyl
Two-tone: choose a second color in the options above.
Style
- Quadruple Thread +$9
Quadruple stitching color applies to the outer lines of thread.
