C5 1997-2004 Chevrolet Corvette Center Console Reupholstery Kit

This product is handmade in Europe and can take up to eight weeks to arrive. No returns or exchanges accepted.

What This Is

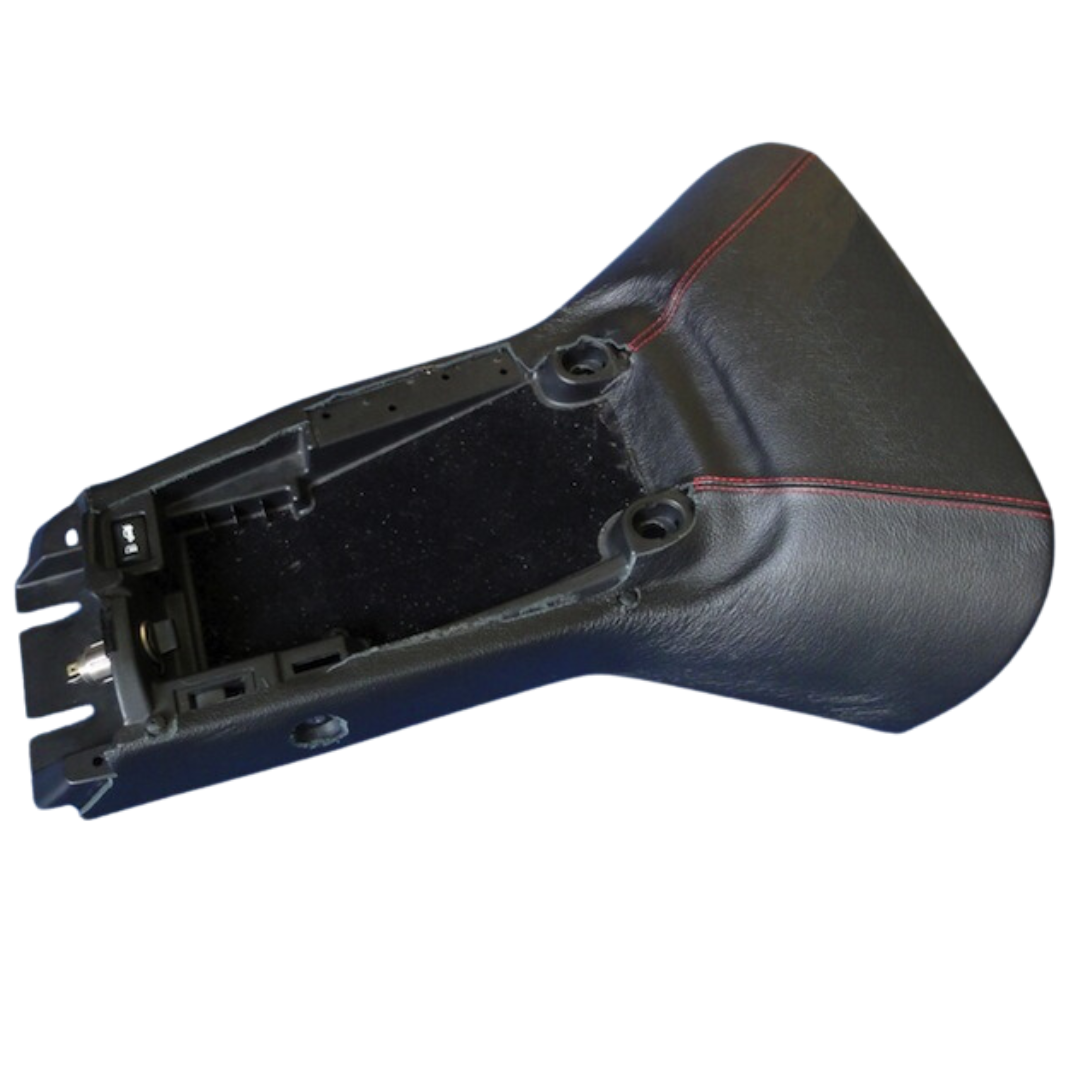

A custom-sewn leather cover that you glue onto your existing 1997-2004 Corvette center console (tunnel). It does not include console parts.

What's Included

• Included: 1 leather console cover, cut and sewn to order.
• Not included: console parts, adhesive, or tools.

Before You Order

• Fits 1997-2004 Corvette. Designed to line up with our C5 armrest lid cover.
• It's made to order, so it can take up to 8 weeks to arrive and can't be returned or exchanged. Please double-check your year, fitment, and colors before ordering.
• International shipping: every piece ships from Poland, so a $15 international shipping charge applies to each item at checkout.

Installation

Difficulty: Advanced  |  Tools: contact adhesive for leather, X-acto knife, screwdrivers

You'll remove the console cover, glue the leather on in sections, wrap and trim the edges, and reinstall.

▼ Click to Open / Close Step-by-Step Installation Guide (6 Steps)

Step 1. Test-fit before gluing so the seams are centered. If you have our armrest lid cover, line the tunnel seams up with its seams; installing both together makes this easiest. Align any embroidery to the rear edge.

Step 2. Glue the rear section first. Lay the leather on from the bottom edge, aligning it between the screw holes, and work toward the back. Don't over-stretch it in the recess, or it can lift later.

Step 3. Let the rear set 10-15 minutes, then glue one side at a time, working from the rear forward. Keep glue off the key hole.

Step 4. Glue along the back side of the edges and stretch the leather over them, making small V-cuts at curves and seams so it lies flat.

Step 5. Once it's set, trim the leather at the hinges, around the rubber bumpers, and anywhere it could keep the lid from closing.

Step 6. Make one small cut at the lock so the key can pass through; the leather flexes enough to lock and unlock.

Leather care: apply a leather conditioner with UV protection every 4-6 weeks to keep it from drying out and cracking.

Options & Pricing

Choose your material, colors, and stitching color in the options above. Add-on prices are added in the cart.

Material

• Regular Leather
• Perforated Leather
• Nappa Leather +$35
• Genuine Alcantara +$55
• Faux Alcantara
• Carbon Fiber Vinyl

Style

• Quadruple Thread +$9

Quadruple stitching color applies to the outer lines of thread.
